Overview

Use Paimon CDC actions to ingest database changes or change events from a message queue into Paimon tables. The actions create target tables and apply supported schema changes while the Flink job is running.

Choose an Ingestion Path

Source	Synchronize into one Paimon table	Synchronize into a Paimon database
MySQL	One source table, or merge multiple tables and shards	Synchronize selected tables; optionally merge same-name shards
PostgreSQL	One source table, or merge tables across schemas in one database	No database action
MongoDB	One collection	Synchronize selected collections
Kafka	Change events from one topic	Route tables from one or more topics
Pulsar	Change events from one topic	Route tables from one or more topics
Flink DataStream API	Ingest custom CDC records	See the API guide for multi-table sinks

Choose table synchronization when you want one target table. If several source tables feed that target, their schemas must be compatible and their primary keys must identify rows across all sources. Rows with the same target primary key represent the same record.

Choose database synchronization when you want to preserve separate tables. Table filters, naming rules, primary-key requirements, and discovery of new tables depend on the source action; check its guide before starting the job.

Flink CDC YAML Pipelines

Flink CDC also supports pipelines described in YAML. To write into Paimon through that framework, see the Flink CDC Paimon sink connector. To read from Paimon and send changes to another system, see Paimon as a Flink CDC Source. The action options in this section, such as --table_conf, belong to the Paimon action CLI.

Before You Start

1. Set up Paimon on Flink and install the source connector dependencies listed in the source guide. Use the paimon-flink-action-2.2-SNAPSHOT.jar for the job.
2. Choose the target warehouse, database, table layout, and primary keys. In action commands, --database and --table identify the Paimon target; source names belong in --mysql_conf, --postgres_conf, --mongodb_conf, --kafka_conf, or --pulsar_conf.
3. Check the source's schema and change-event requirements. For Kafka and Pulsar, the event format determines which types, table names, and keys can be recovered.
4. Start with a source-specific example, then add computed columns and job settings.

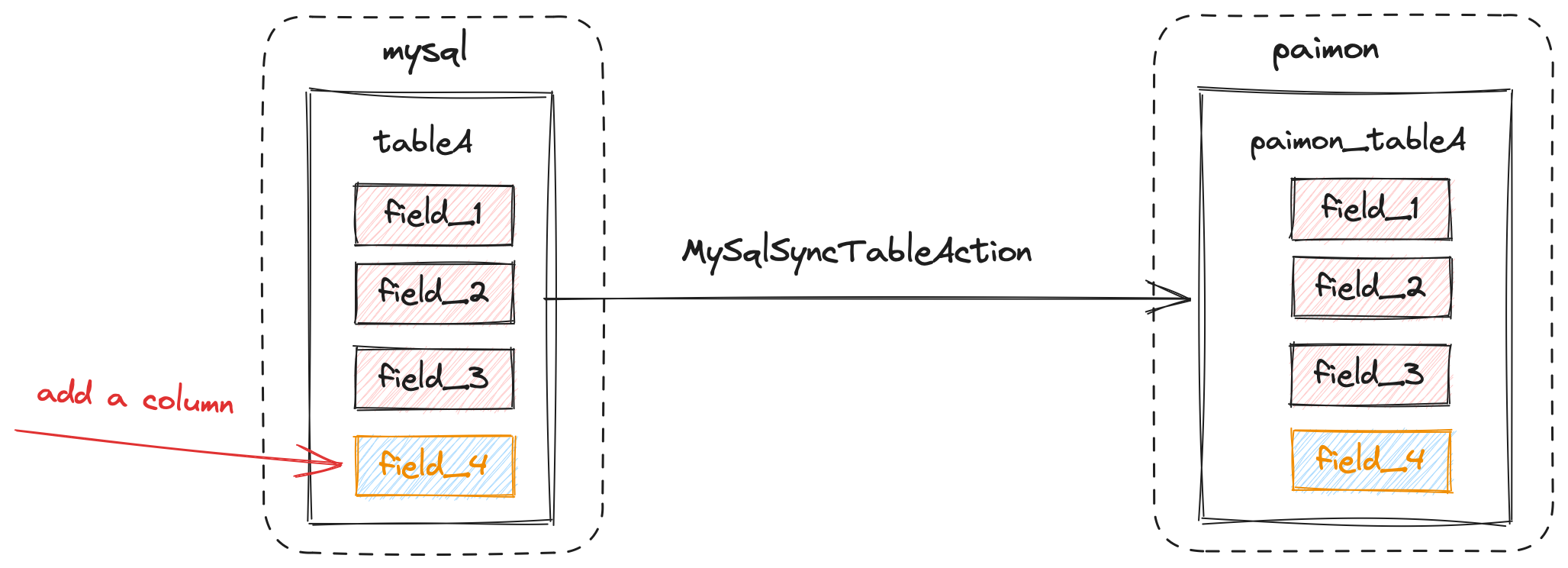

What Is Schema Evolution

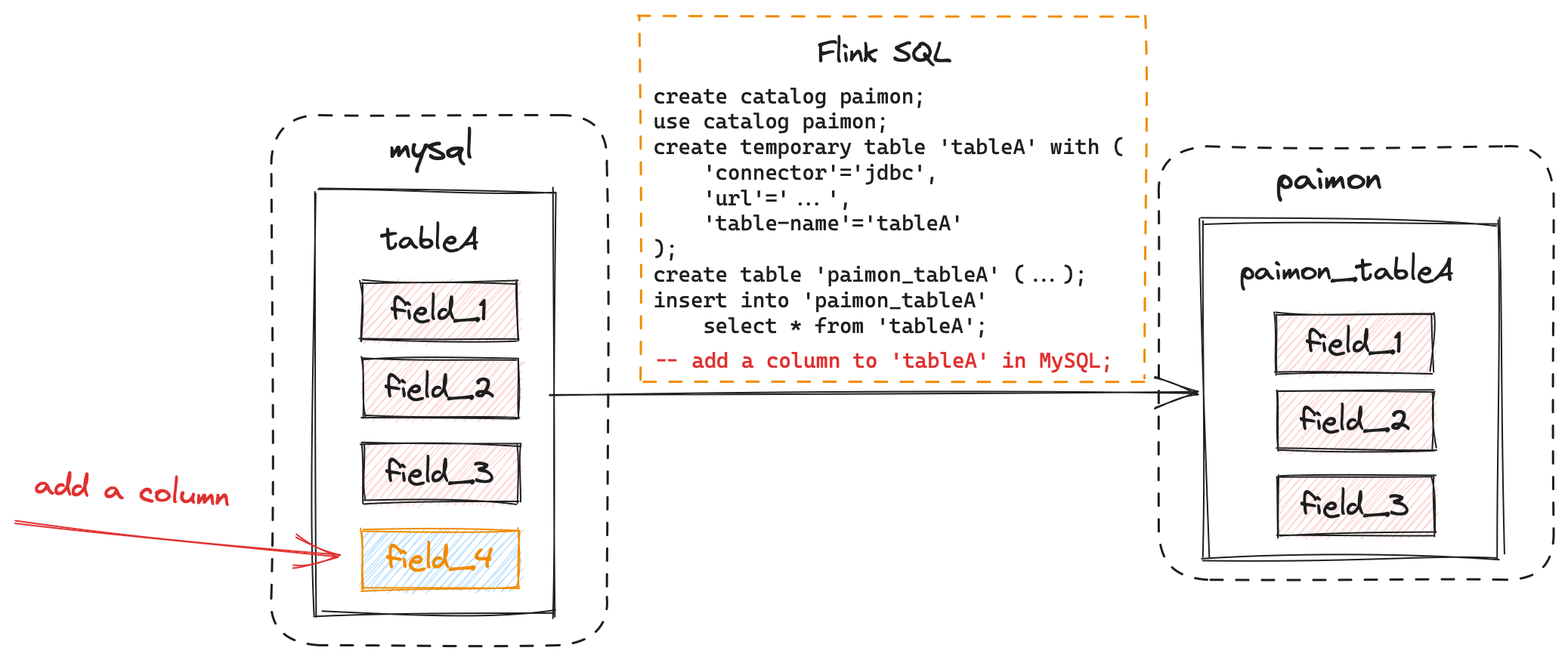

An ordinary Flink SQL INSERT INTO ... SELECT ... job uses the schemas declared for that job. Adding a column in the source does not automatically add it to the SQL definitions and target table. Paimon CDC actions can carry the new field and its values through to Paimon without restarting for a supported column addition.

Supported Changes

Schema evolution is not full DDL replication. Column additions and compatible type changes can be applied; dropping or renaming source objects does not perform the equivalent operation on existing Paimon objects. See Schema Evolution and Type Mapping for the supported changes, limitations, and mapping options.

Configuration Reference

• Computed columns: derive partition values and other fields, with temporal and string functions.

• Type mapping: control how source types become Paimon types, including MySQL-specific mappings.

• Job settings: configure checkpointing, the job name, catalog properties, and table properties.
• Starting with an empty topic: create the target schema before running a Kafka or Pulsar table action.
