Data Evolution

Overview​

Paimon supports schema evolution, allowing you to add, modify, or delete column schema. Data Evolution mode extends this for append tables by allowing partial column updates without rewriting entire data files. Updated column data is written to new files and merged with the original data during reads.

Data Evolution mode offers the following advantages:

  • Efficient partial-column updates: update a subset of columns and avoid the I/O cost of rewriting untouched columns.
  • Reduced file rewrites: append new column data to dedicated files when backfilling or evolving data.
  • Delete support: record row deletions with deletion vectors without rewriting existing column files.
  • Optimized reads: merge original and updated column files at read time.

To enable Data Evolution, create an append table with both row-tracking.enabled and data-evolution.enabled set to true.

CREATE TABLE target_table (id INT, b INT, c INT) TBLPROPERTIES (
    'row-tracking.enabled' = 'true',
    'data-evolution.enabled' = 'true'
);

INSERT INTO target_table VALUES (1, 1, 1), (2, 2, 2);

Partial Updates​

You can update selected columns with Spark SQL UPDATE or MERGE INTO, the Flink data_evolution_merge_into procedure, or the PyPaimon table update API. Only the updated column files are written; untouched columns remain in their original files.

UPDATE target_table SET b = b + 10 WHERE id = 1;

CREATE TABLE source_table (id INT, b INT);
INSERT INTO source_table VALUES (1, 11), (2, 22);

MERGE INTO target_table AS t
USING source_table AS s
ON t.id = s.id
WHEN MATCHED THEN UPDATE SET t.b = s.b;

SELECT * FROM target_table;
+----+----+----+
| id | b  | c  |
+----+----+----+
| 1  | 11 | 1  |
| 2  | 22 | 2  |
+----+----+----+

Notes:

  • Spark SQL supports standalone UPDATE statements for Data Evolution tables.
  • Concurrent Spark SQL UPDATE statements that update the same data file and columns may be retried automatically. Configure retry attempts with spark.paimon.write.data-evolution.update-conflict-retry.max-attempts and retry wait time with spark.paimon.write.data-evolution.update-conflict-retry.wait-ms.
  • In Spark SQL, MERGE INTO supports WHEN NOT MATCHED BY SOURCE for delete actions on Data Evolution tables.
  • The Flink data_evolution_merge_into procedure currently supports updating or inserting columns, but not inserting new rows.

Deletes​

Data Evolution tables can use deletion vectors to record deleted rows without rewriting existing column files. To write deletes, enable deletion vectors together with row tracking and Data Evolution:

warning

Deleting rows with deletion vectors does not physically remove the original data immediately. If a table has many deleted rows, run compaction to materialize the deletions; otherwise, the deleted data still consumes storage space and may reduce read efficiency. Set data-evolution.compaction.rewrite-row-ids=true for compaction to rewrite all column files in the compacted range, physically apply deletion vectors, and reassign row IDs. Enable this only when callers do not rely on stable _ROW_ID; this invalidates row-id based references and drops global indexes for affected partitions.

CREATE TABLE target_table (id INT, b INT, c INT) TBLPROPERTIES (
    'row-tracking.enabled' = 'true',
    'data-evolution.enabled' = 'true',
    'deletion-vectors.enabled' = 'true'
);

Spark SQL supports DELETE FROM for Data Evolution tables:

DELETE FROM target_table WHERE id = 1;

To physically remove deleted rows during compaction:

CALL sys.compact(
    table => 'target_table',
    options => 'data-evolution.compaction.rewrite-row-ids=true'
);

Spark SQL also supports delete actions in MERGE INTO:

CREATE TABLE source_table (id INT, op STRING);
INSERT INTO source_table VALUES (2, 'delete'), (3, 'update');

MERGE INTO target_table AS t
USING source_table AS s
ON t.id = s.id
WHEN MATCHED AND s.op = 'delete' THEN DELETE
WHEN MATCHED AND s.op = 'update' THEN UPDATE SET t.b = t.b + 10
WHEN NOT MATCHED BY SOURCE AND t.id > 10 THEN DELETE;

The WHEN NOT MATCHED BY SOURCE clause requires Spark 3.4 or later. Currently, only Spark supports writing deletes for Data Evolution tables.

Self Updates​

Self updates transform existing column values in place. In Flink SQL, create a temporary source view from the $row_tracking system table and join by _ROW_ID. In PyPaimon, use the shard scan + rewrite workflow to read existing values and write the derived columns back.

CREATE TEMPORARY VIEW source_view AS
SELECT _ROW_ID, b + c AS b
FROM default.target_table$row_tracking;

CALL sys.data_evolution_merge_into(
    'default.target_table',
    'TempT',
    '',
    'source_view',
    'TempT._ROW_ID=source_view._ROW_ID',
    'b=source_view.b',
    2
);

Self-update notes:

  • The source and target table name cannot be the same in the Flink procedure. Create a temporary view as the source.
  • Use view._ROW_ID = source._ROW_ID to identify the self-merge pattern in Flink.
  • _ROW_ID is only available via the $row_tracking system table in SQL.
  • Self-merge only supports WHEN MATCHED THEN UPDATE semantics.

File Group Spec​

Through the row-id metadata, files are organized into file groups.

When writing, the Data Evolution update path writes only the specified updated columns to new files. The original data files remain unchanged.

When reading, Paimon reads both the original data files and the new files containing updated column data, then merges files with the same first row id to present a unified view of the table.

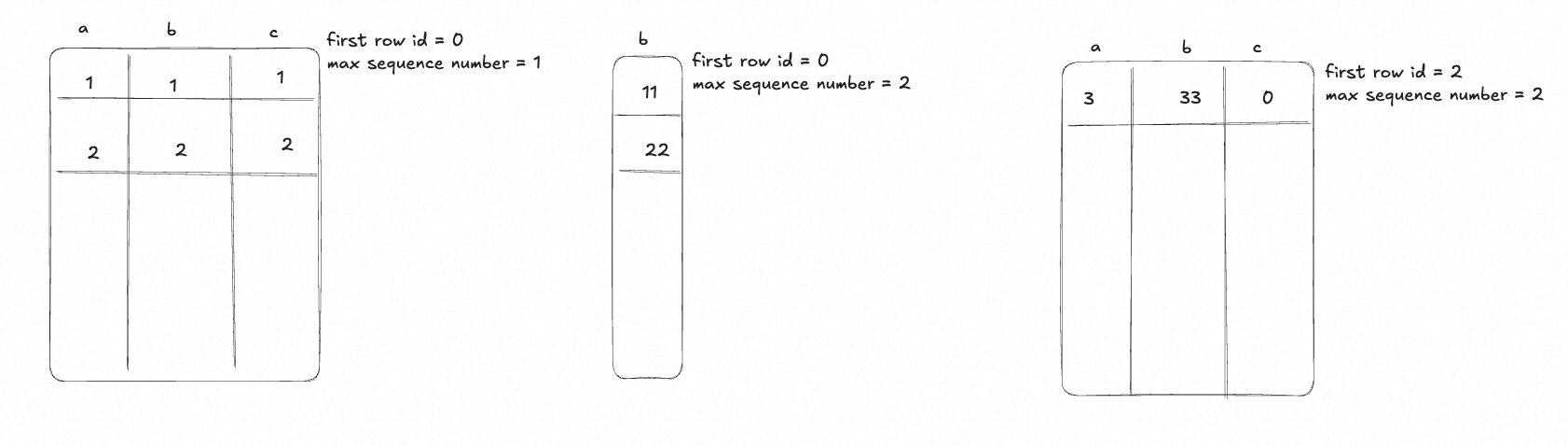

After writing, files in target_table are organized as below:

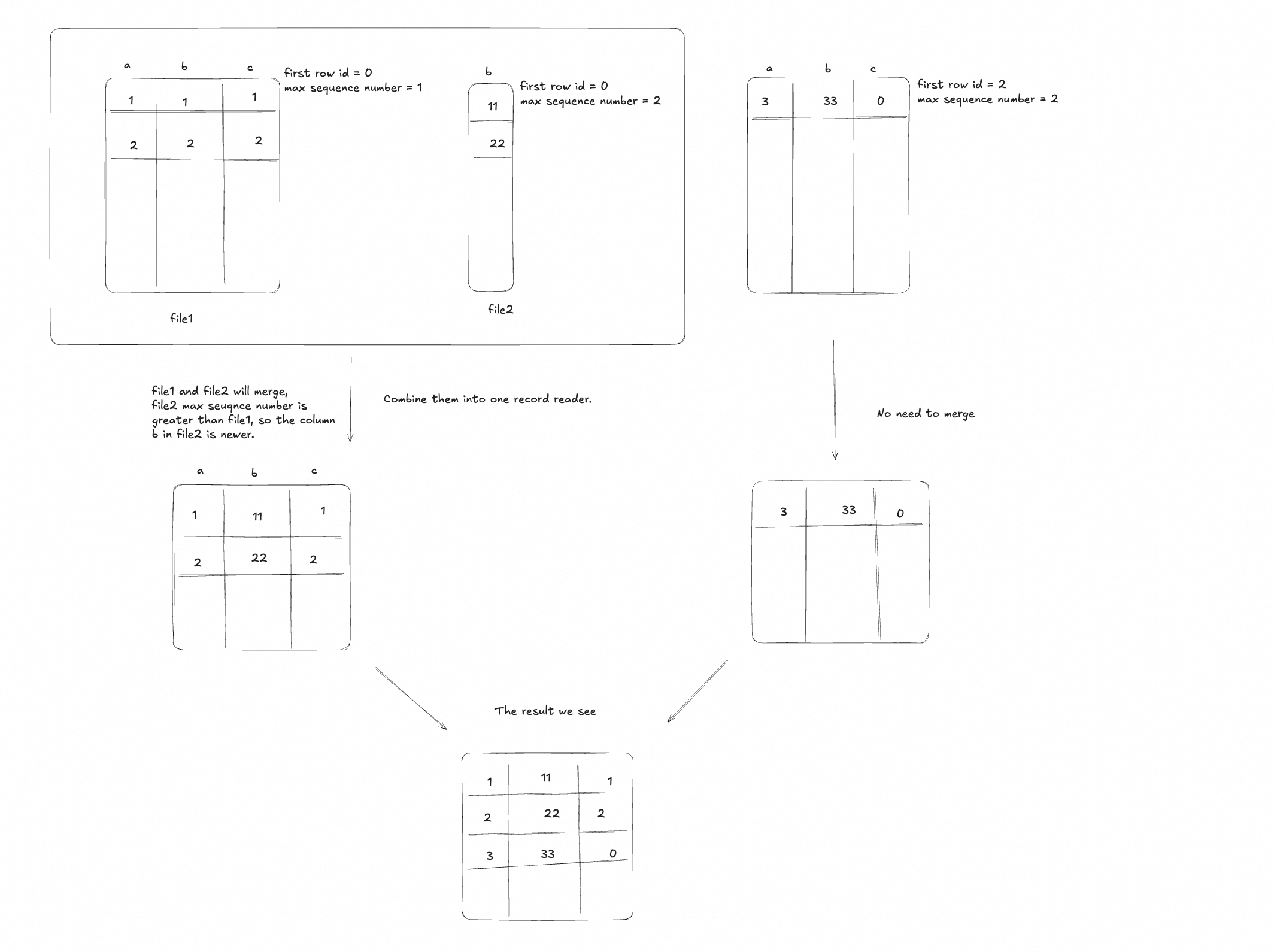

When reading, files with the same first row id are merged:

The advantages of this mode are:

  • Avoid rewriting the whole file when updating partial columns, reducing I/O cost.
  • Keep read performance efficient through optimized merge processing.
  • Use disk space more efficiently because only updated columns are written to new files.
